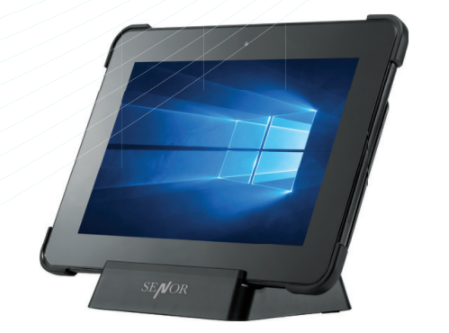

Senor - NanoPAD X
10.1" (256mm) POS Tablet PC
 |
The Senor NanoPAD X Tablet PC is a lightweight 10" tablet PC that has been purposefully designed, developed and built for mobile Point Of Service (POS) applications for restaurants and hospitality. Providing businesses the flexibility to complete transactions directly with customers, the NanoPAD X delivers convenience and versatility, giving a positive effect to customer satisfaction, customer loyalty and helps boost sales as an efficient system in place. The Smart Dock is a versatile docking station to enhance the functionality of the NanoPAD X. It features height and angle adjustability with a secure key lock to adapt to various work environments. The dock includes multiple connectivity ports, such as three USB 2.0 ports, two DB9 serial ports, one RJ12 cash drawer port and an ethernet port. The NanoPAD X offers a blend of performance, integrated features and mobility. It helps every user to work faster, smarter and more effectively, providing the capabilities, applications, and ergonomic ease-of-use that mobile workers need to be more productive in today’s decentralized work environments. Features
|
|---|
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Dimensions | 282 x 198 x 18 mm | ||||
| Weight | 1kg | ||||
| Environmental Characteristics | |||||
| Operating Temperature | 5°C to 40°C | ||||
| Storage Temperature | -20°C to 60°C | ||||
| Operating Humidity | 10% to 90% (Non-Condensing) | ||||
| Storage Humidity | 10% to 90% (Non-Condensing) | ||||
| System Specifications | |||||
| Processor | Intel Quad Core Celeron N4120 1.1 GHz, up to 2.6 GHz | ||||
| System Memory | 4GB RAM | ||||
| Video Port | Micro HDMI | ||||
| Storage | 64GB eMMC 1 x micro SD card slot (max. 32 GB) | ||||
| Display Specifications | |||||
| Size | 10.1" | ||||
| Resolution | 1280 x 800 pixels | ||||
| Electrical Specifications | |||||
| Battery | 7.4V, 0.5A | ||||
| Wireless Specifications | |||||
| Standard | WiFi: 802.11b/g/n Bluetooth: Bluetooth 4.1 | ||||
| User Interface | |||||
| Touch Screen | Projective Capacitive 10-Point-Touch | ||||
| Additional Interfaces | |||||
| Standard | 1x USB 3.0, 1x micro USB Ports, 1x MicroSD Card Slot | ||||
| Camera | Built-in Front Camera | ||||
| Software | |||||
| Operating System | Windows 10 IoT / Pro | ||||
| Smart Dock (Option) | |||||
| Dock Ports | 3 x USB 2.0, 2 x DB9, 1 x DK, 1 x LAN, keylock | ||||
| Options | |||||
| Factory Fit | Mounting bracket, 1D/2D Scanner, Smart Dock, MSR, RFID Reader | ||||
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Senor NanoPAD X Windows 10 Tablet | ||||
| NANOPADX | Senor, NanoPAD X, 10.1” LED, 1280 x 800 resolution, 350 cd/m² brightness; Intel Quad Core Celeron N4120 1.10 GHz Turbo Boost up to 2.60 GHz, 4 GB RAM, 64 GB eMMC storage; Built-in 3-track MSR, Bluetooth, Wi-Fi, GPS & G-sensor | $2,090.00 | A | |
| [B] Options | ||||
| NANOPAD1DSCANNER | Senor, 1D Scanner Module, Honeywell N4315 1D barcode scanner | $291.50 | A | |
| NANOPAD2DSCANNER | Senor, 2D Scanner Module, Honeywell N3680 1D/2D image reader | $352.00 | A | |
| NANOPADMSRRFID | Senor, RFID Reader, Supports MiFare one & MiFare CPU card (13.56 MHz) | $209.00 | A | |
| NANOPADX4GMOD | Senor, 4G Module, 4G LTE/WCDMA/GSM (3G compatible) | $176.00 | A | |
| [C] Smart Dock | ||||
| NANOPADXMD | Senor, Upgrade to Smart Dock w/o Printer, 3 x USB 2.0, 2 x Serial (DB9), 1 x RJ12 (24 V), 1 x LAN | $291.50 | A | |
| NANOPADXMDP | Senor, Upgrade to Smart Dock with Printer, 3 x USB 2.0, 2 x Serial (DB9), 1 x RJ12 (24 V), 1 x LAN; 57 x 50 mm thermal Printer, 80mm/s, 203 DPI | $385.00 | A | |
| [D] Accessories | ||||
| NANOPADVBRK | Senor, VESA Mount Bracket, VESA 75 x 75 mm, 100 x 100 mm | $55.00 | A | |
| NANOPADXCD | Senor, Charging station, 5V/4A, 2 x USB 2.0 | $110.00 | A | |
| 2-6260-020-8 | CA6260-2 | USB A to A Cable - 2m | $5.50 | U1 |
| 2-6260-030-4 | CA6260-3 | USB A to A Cable - 3m | $11.00 | U1 |
